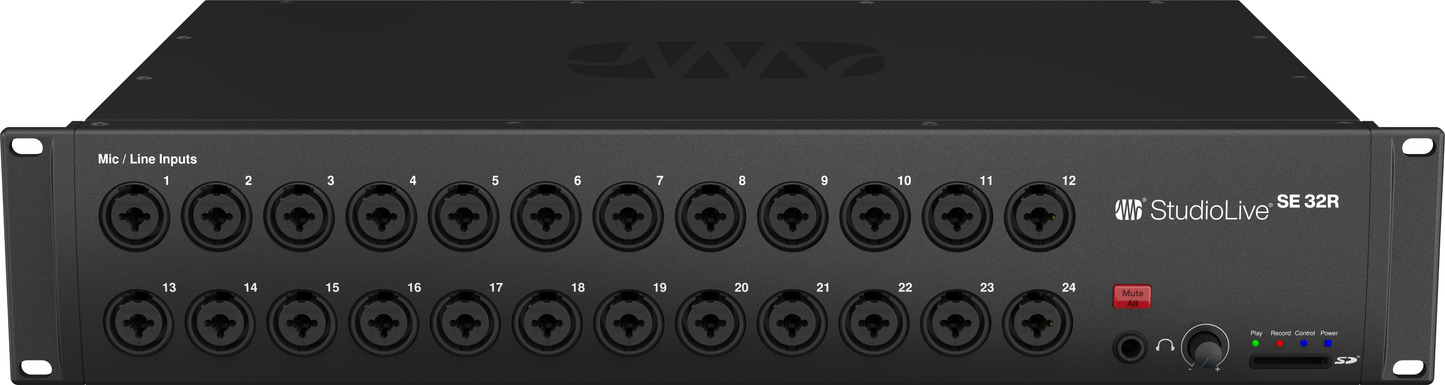

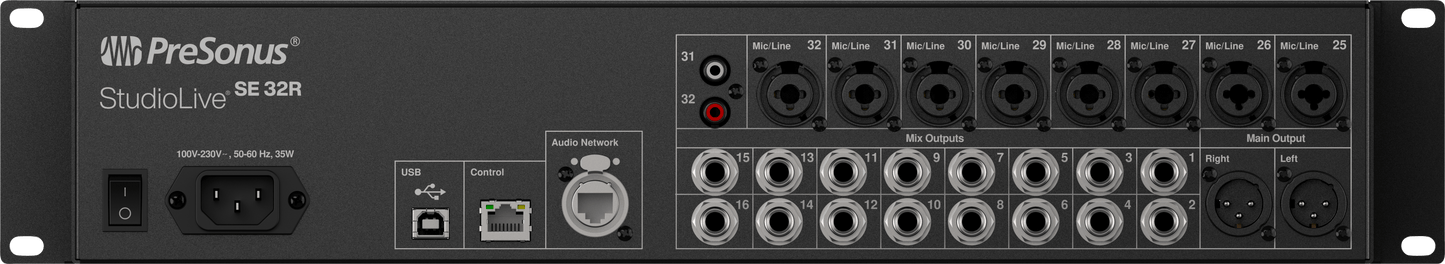

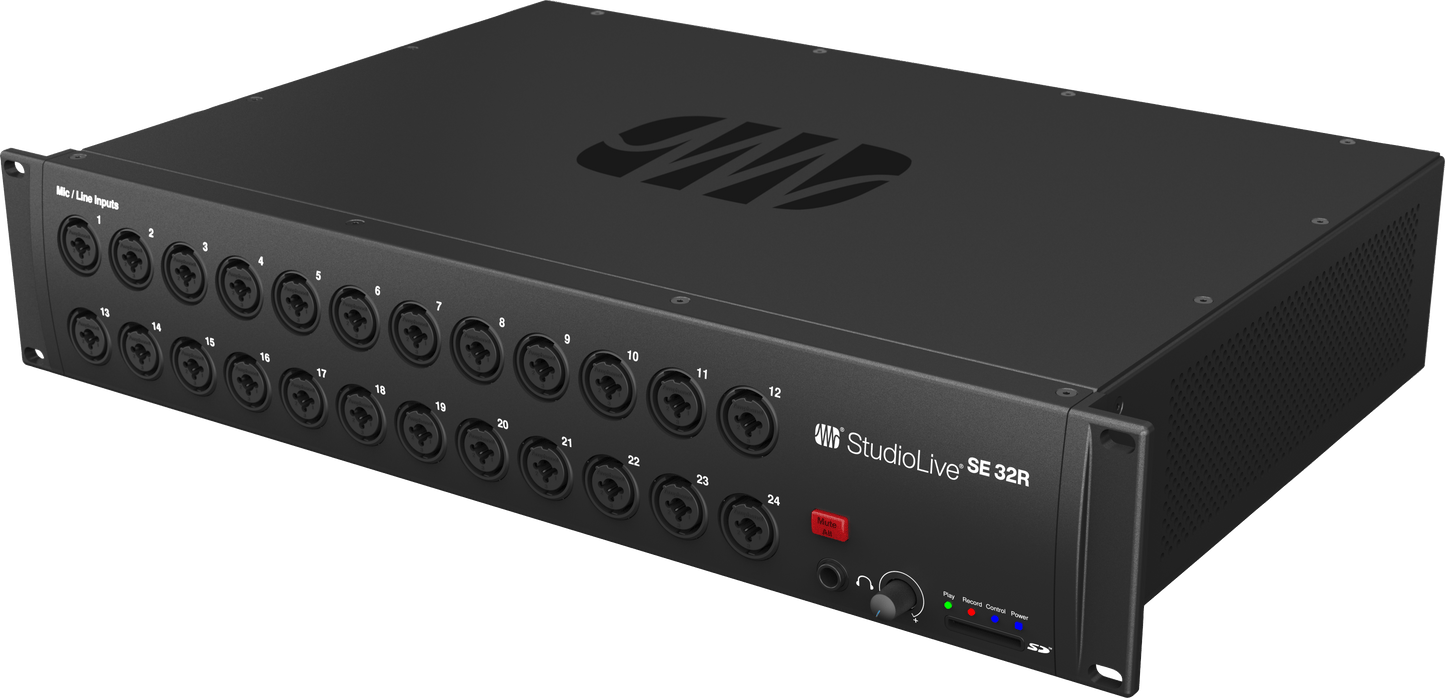

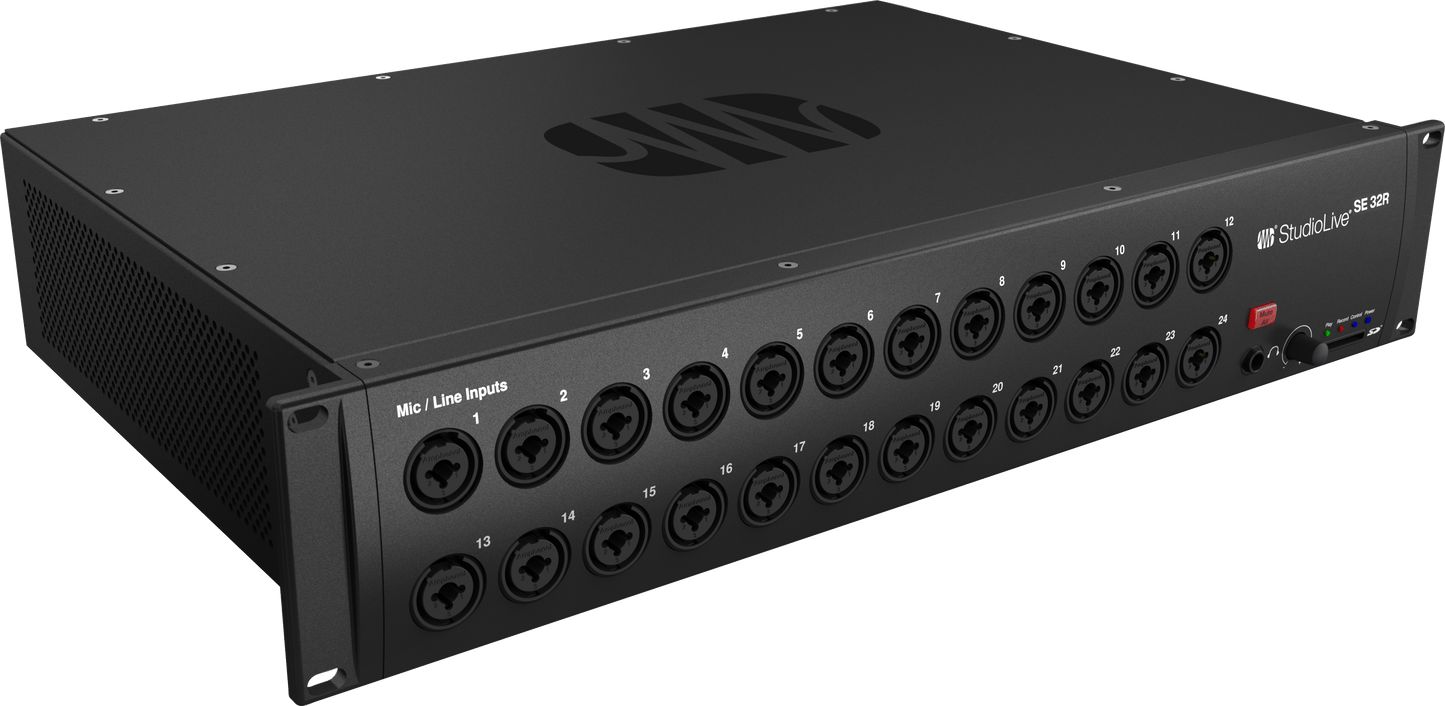

StudioLive® SE 32R Digital Rack Mixer
StudioLive® SE 32R Digital Rack Mixer
Impossible de charger la disponibilité du service de retrait

Aperçu
40-channel digital rack mixer with 32 onboard XMAX-R recallable preamps, 16 FlexMixes, four dedicated subgroups and FX mixes, 24 DCAs, multitrack USB plus stereo SD recording, and Milan-certified AVB integration for live mixing, in-ear monitor rigs,
La StudioLive SE 32R combine 32 préamplis XMAX-R contrôlables à distance avec 16 mixages Flex, 4 sous-groupes, 4 mixages d’effets et 24 DCA pour un contrôle complet des canaux. Une interface audio USB 64x64 constamment bidirectionnelle, l’enregistrement stéréo intégré sur carte SD et une balance virtuelle avec le logiciel Capture permettent d’offrir une solution complète d'enregistrement et de lecture.
Le réseau AVB certifié Milan garantit une intégration transparente avec les boîtiers de scène NSB, les mélangeurs de retour personnels EarMix 16M et d'autres consoles de mixage StudioLive série III. Le changement de source par canal et le contrôle sans fil avec Universal Control et QMix-UC offrent aux ingénieurs et aux artistes une flexibilité maximale de flux de travail.
Overview
Caractéristiques
- Console de mixage numérique en rack à 40 canaux avec 32 préamplis XMAX-R contrôlables à distance
- 16 mixages Flex configurables comme auxiliaires, sous-groupes ou mixages matriciels
- 4 sous-groupes et 4 mixages d’effets dédiés avec retours stéréo
- 24 groupes DCA pour un contrôle précis
- Interface audio USB 2.0 64x64 constamment bidirectionnelle
- Enregistrement stéréo intégré sur carte SD
- Intégration de Capture avec balance virtuelle
- Mise en réseau AVB certifié Milan pour les écosystèmes de la série III
- Changement de source par canal (analogique, USB, carte SD, AVB)
- Mixage à distance et éditeur hors ligne avec Universal Control
- Mixage de retour personnel avec QMix-UC
- Modes autonome, console de mixage de retour ou boîtier de scène
- Licence perpétuelle de Fender Studio Pro incluse
Téléchargements
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Points forts
GRANDE FLEXIBILITÉ DES CANAUX
32 préamplis XMAX-R intégrés avec routage polyvalent des mixages Flex, sous-groupes, effets et DCA.
ROUTAGE ET MONITORING PROFESSIONNELS
Conçus pour la mobilité, la polyvalence et la flexibilité : en tournée, sur scène, ou en studio.
L'ENREGISTREMENT FACILE
Enregistrement USB 64x64, enregistreur stéréo sur carte SD embarqué et balance virtuelle avec intégration des logiciels Capture et Fender Studio Pro.
COMPATIBLE RÉSEAU ET SANS-FIL
Universal Control et QMix-UC placent le mixage entre vos mains, et la mise en réseau audio certifié Milan facilite l'extension de votre système.
INTÉGRATION DE FENDER STUDIO PRO
L'intégration poussée avec Fender Studio Pro simplifie l'enregistrement grâce au contrôle direct des préamplis et à la commutation transparente entre le traitement intégré et le traitement par plug-in avec Fat Channel XT.
Spécifications
Électronique
Headphone Jack
1/4" TRS Active Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
230V UK
VoltageRequirements
100-230 VAC, 50-60 Hz
Général
Color
Black
Product Name
StudioLive® SE 32R Digital Rack Mixer, Black, UK
Series
StudioLive®
Accastillage
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Entrées
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Measurements
Media Storage Capacity
SD Card: 2 GB; SDHC Card: 32 GB
Product Depth
12" (305mm)
Product Height
3.5” (90 mm)
Product Height/Length
3.5” (90 mm)
Product Weight
11.2 lbs. (5 kg)
Product Width
19" (483mm)
Refinement Weight
25-under
Divers
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Recording File Format
Stereo WAV
Supported Media Format
FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates
48 kHz, 44.1 kHz
Output
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Performance
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
SD Recorder Bit Depth
Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate
44.1 or 48 kHz
