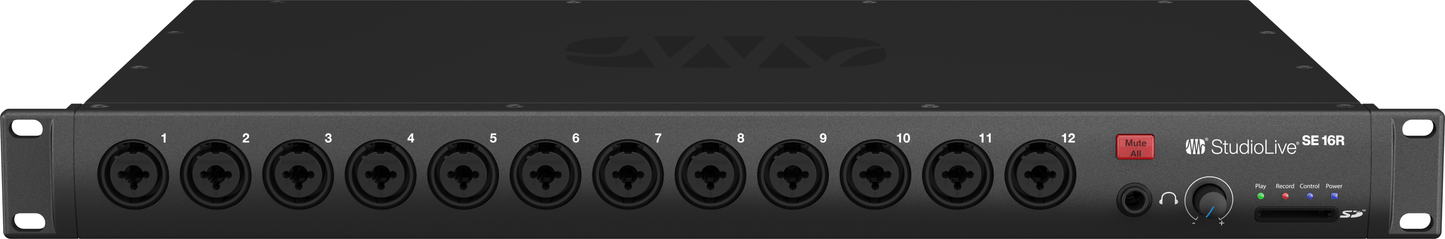

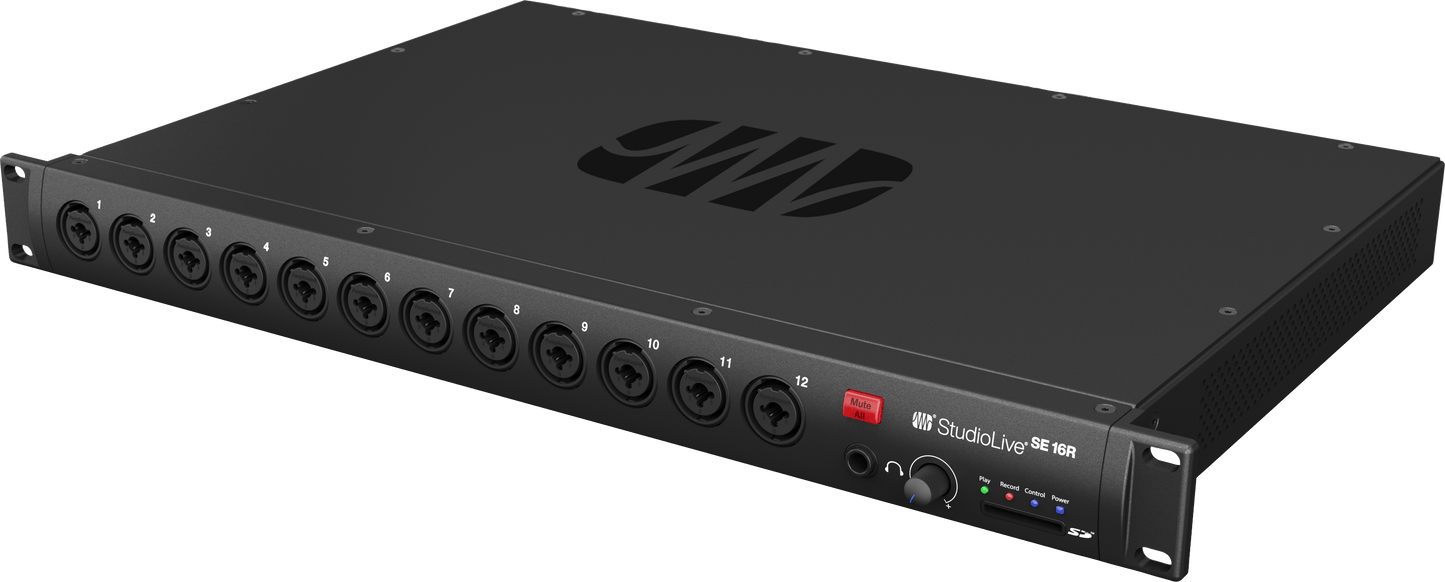

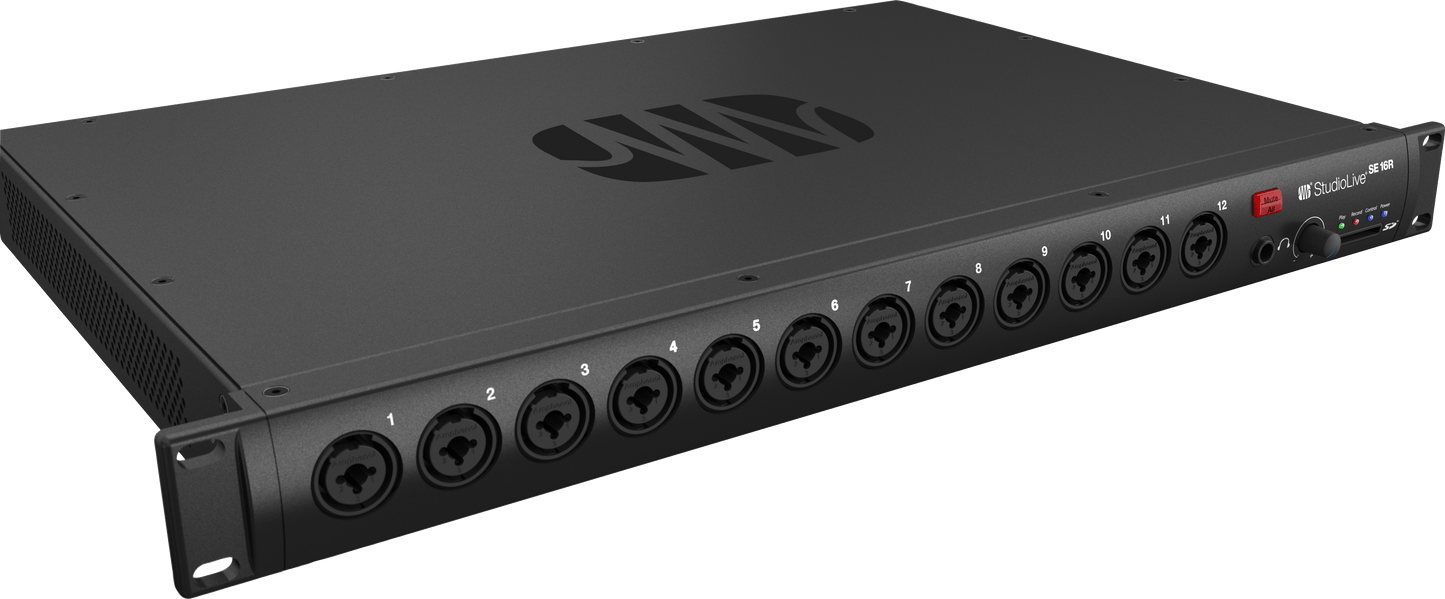

StudioLive® SE 16R Digital Rack Mixer
StudioLive® SE 16R Digital Rack Mixer
Impossible de charger la disponibilité du service de retrait

Aperçu
Compact 18-channel digital rack mixer with XMAX-R recallable preamps, six FlexMixes, integrated USB and SD recording, and Milan-certified audio networking for live mixing, in-ear monitor rigs, recording, and livestreaming.
La StudioLive SE 16R intègre la puissance d’une grande console de mixage dans un unité compacte occupant une unité de rack. Avec 16 préamplis micro XMAX-R contrôlables à distance et le traitement FLEX DSP Fat Channel, chaque entrée et chaque bus dispose d'un égaliseur et d'une compression de qualité studio pour un son impeccable et professionnel. Six mixages Flex, deux mixages d'effets dédiés et six DCA procurent un contrôle complet du routage.
L'enregistrement USB 18x18 intégré, l’enregistreur stéréo sur carte SD embarqué et la balance virtuelle avec le logiciel Capture rationalisent l'enregistrement et la lecture. Le changement de source par canal entre analogique, USB, carte SD et AVB facilite les installations hybrides. Et la mise en réseau audio intégrée, certifiée Milan, permet un fonctionnement plug-and-play avec toute la gamme des produits StudioLive série III, tandis qu’Universal Control et QMix-UC apportent la liberté du mixage sans fil.
Overview
Caractéristiques
- Console de mixage numérique en rack à 18 canaux avec 16 préamplis micro XMAX-R contrôlables à distance
- 6 mixages Flex configurables comme auxiliaires, sous-groupes ou mixages matriciels
- 2 mixages d’effets dédiés avec retours stéréo
- Interface audio USB 2.0 18x18 constamment bidirectionnelle
- Enregistrement stéréo intégré sur carte SD
- Balance virtuelle avec le logiciel Capture
- Mise en réseau AVB certifié Milan pour les systèmes StudioLive série III
- Changement de source par canal (analogique, USB, carte SD, AVB)
- Mixage à distance et éditeur hors ligne avec Universal Control
- Mixage de retour personnel avec QMix-UC et molette individuelle
- Modes autonome, console de mixage de retour, interface ou boîtier de scène
- Licence perpétuelle de Fender Studio Pro incluse
Téléchargements
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Points forts
MIXAGE COMPACT ADAPTÉ AUX TOURNÉES
18 canaux avec préamplis entièrement contrôlables à distance et la puissance d’un DSP dans un rack 1U.
ROUTAGE FLEXIBLE
Les mixages Flex, les bus d'effets et les DCA configurables permettent de créer rapidement et facilement des mixages de qualité studio.
FLUIDITÉ D’ENREGISTREMENT
Enregistrement multipiste USB avec intégration de Capture et balance virtuelle, plus enregistreur stéréo sur carte SD embarqué.
COMPATIBLE RÉSEAU ET SANS FIL
Mise en réseau AVB certifié Milan, Universal Control et QMix- UC pour une liberté totale de flux de travail.
INTÉGRATION DE FENDER STUDIO PRO
L'intégration poussée avec Fender Studio Pro simplifie l'enregistrement grâce au contrôle direct des préamplis et à la commutation transparente entre le traitement intégré et le traitement par plug-in avec Fat Channel XT.
Spécifications
Électronique
Headphone Jack
1/4" TRS Active Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
230V UK
VoltageRequirements
100-230 VAC, 50-60 Hz
Général
Color
Black
Product Name
StudioLive® SE 16R Digital Rack Mixer, Black, UK
Series
StudioLive®
Accastillage

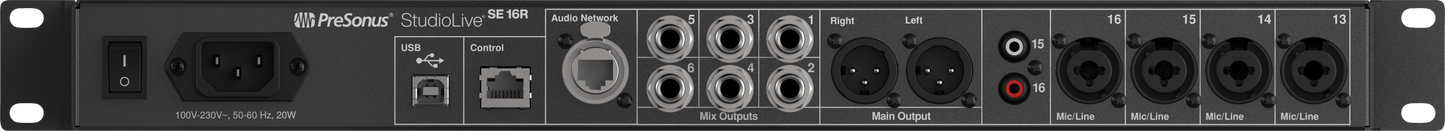

Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Entrées
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Measurements
Media Storage Capacity
SD Card: 2 GB; SDHC Card: 32 GB
Product Depth
12" (30.5 cm)
Product Height
1.75" (4.45 cm)
Product Height/Length
1.75" (4.45 cm)
Product Weight
8.6 lbs. (3.9 kg)
Product Width
19" (48.3 cm)
Refinement Weight
25-under
Divers
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Recording File Format
Stereo WAV
Supported Media Format
FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates
48 kHz, 44.1 kHz
Output
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Performance
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
SD Recorder Bit Depth
Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate
44.1 or 48 kHz
