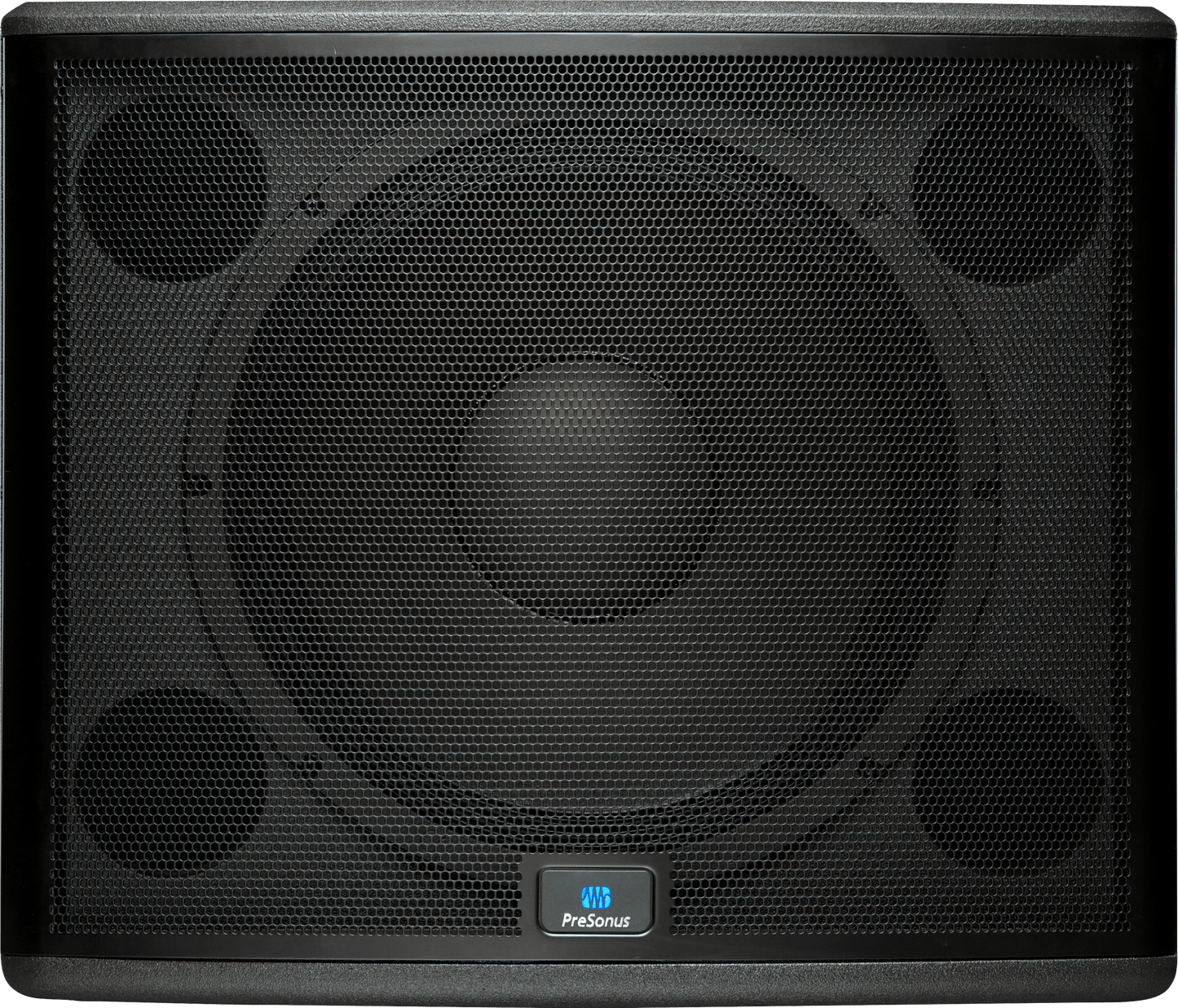

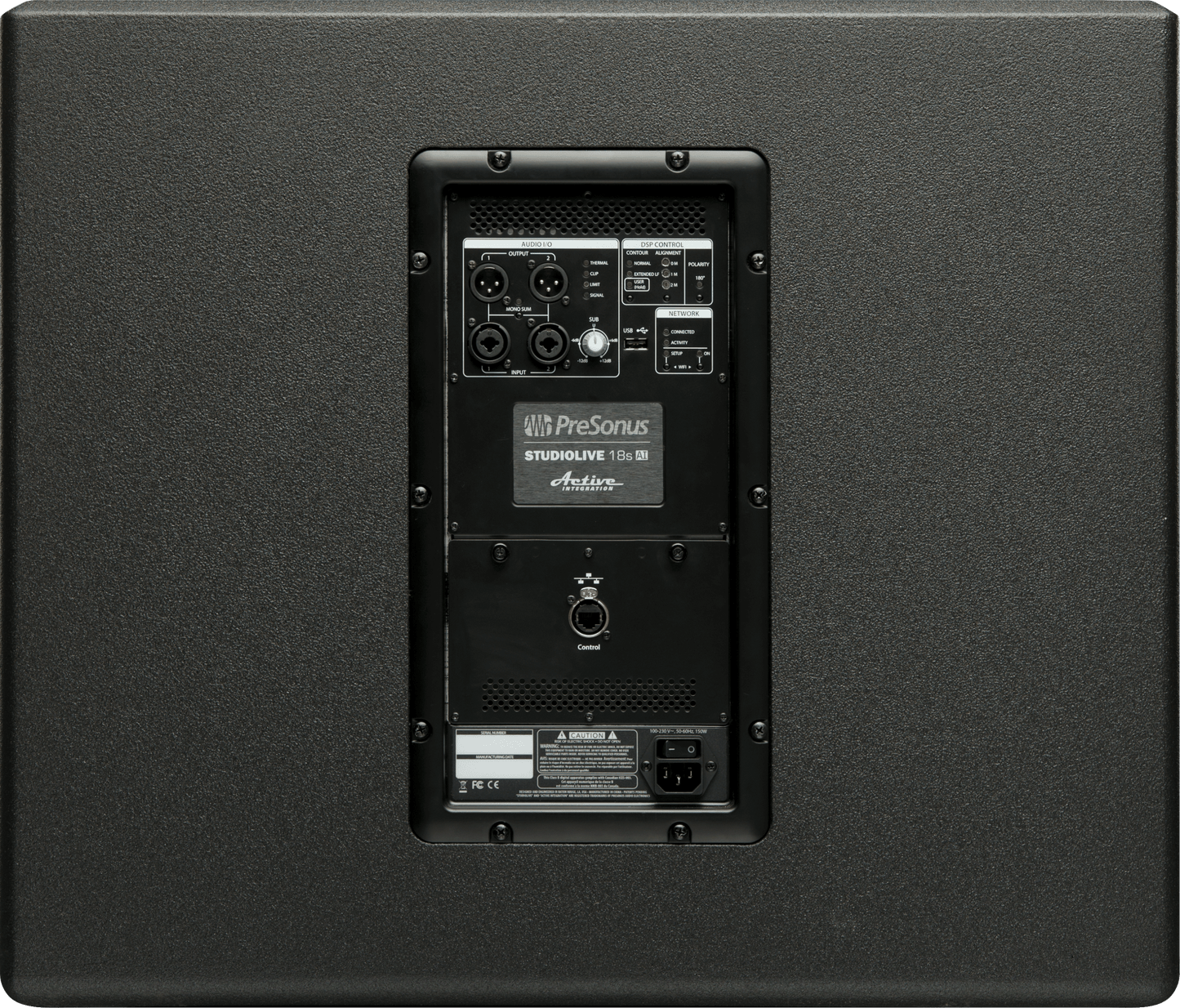

StudioLive® 18sAI Active Integration Subwoofer
StudioLive® 18sAI Active Integration Subwoofer
Impossible de charger la disponibilité du service de retrait
Aperçu
Les caissons de graves à intégration active StudioLive® 18sAI offrent sur scène une précision digne d'un moniteur de studio grâce à des fonctions embarquées sans précédent pour le traitement et la mise en réseau. La technologie PreSonus® Active Integration ("intégration active") permet un contrôle par réseau avec ou sans fil pour les fonctions de configuration, de réglage et de suivi, depuis un iPad®, un ordinateur portable Mac® ou Windows®, ou les deux. Puissant et musical, le StudioLive 18sAI prolonge naturellement les basses fréquences avec une réponse transitoire rapide et précise et constitue un parfait complément pour les enceintes large bande StudioLive 312AI, 315AI et 328AI, ce qui en fait un choix idéal pour les installations fixes et les applications mobiles dans lesquelles la fidélité compte.
Overview
Caractéristiques
- 18-inch ferrite transducer
- 1,000 watt (bridged), Class D amplifier
- Active Integration 32-bit, 96 kHz DSP with variable crossover, dynamic limiting, and excursion limiting
- Stereo line inputs (XLR-¼” combo) and switchable stereo/summed-mono line outputs (XLR)
- Universal Switch mode power supply with power-factor correction
- Ships with Ethernet connection for wired control; optional Dante™ card
- Alignment delay (switchable: 0, 2, or 4 feet) enables subwoofer to be placed in different positions relative to a full-range speaker system
- Wireless or wired networking with free SL Room Control software for Mac®, Windows®, and iPad® enables complete setup, tuning, and monitoring
- Network Setup Wizard automatically detects each speaker and allows you to quickly connect to your wireless router network
- Remote control over Maximum SPL/output level, high-pass filter, onboard operational modes, performance monitoring, mute, and speaker delay
- 31-band graphic EQ and 8-band parametric EQ (total of 10, including feedback notch filter)
- Visually display room layout on a laptop or iPad
- Edit, save, recall, and share speaker-setup parameters
- Comfortable, ergonomic handles
- Integrated pole insert and interlocking stacking provisions
- Optional mountable Sub Dolly and pull-tested Sub Pole to mount a full-range system atop the 18sAI
Téléchargements
Vous ne trouvez pas ce que vous cherchez ?
Connectez-vous à votre compte my.presonus.com.
Vous ne trouvez pas ce que vous cherchez ?
Connectez-vous à votre compte my.presonus.com.
Spécifications
Auxiliary Input
N/A
Channels
Two
Connectivity
USB
Inputs
Two - 2 x Line
Line Out
Two - 2 XLR Male (Mix Out, Direct Out)
Voltage
220-240V EU
VoltageRequirements
100-240 VAC, 50-60 Hz
Amplifier Type
Class-D
Color
Black
Product Name
StudioLive® 18sAI Active Integration Subwoofer, Black, 220-240V EU
Series
StudioLive®
Audio Controls
Speaker Level (Variable: -12 dB to +12 dB), Mono Sum
Cabinet Material
15mm Eucalyptus Plywood
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
Handle
2 Side
LF Power
2 x 500W Bridged (1000W Total)
LF Transducers
1x18" Ferrite (4" Voice Coil)
Product Depth
26" (66 cm)
Product Height
23" (58.42 cm)
Product Height/Length
23" (58.42 cm)
Product Weight
94 lbs. (42.64 kg)
Product Width
24" (60.96 cm)
DSP Features
Contour Presets: Normal, Extended LF Delay Presets: 0m, 1m, 2m
Power Cable
IEC
Protections
Amplifier: Over-Current, DC, Over/Under-Voltage, Over-Temperature, High Frequency
Transducer: 4-Channel Multi-Threat Limiter
Supported Sample Rates
96 kHz
Amplifier Dynamic Range
119 dB (A-Weighted)
Digital Audio Bit Depth
24 Bit
Peak SPL
135 dB
Total Harmonic Distortion
<0.05% (20 Hz - 20 kHz)
Total Power Output
1000W (Total Power Without Protection Algorithms and Limiter Enabled)
Speaker Type
Powered Subwoofer
Total Impedance
NA
Spécifications
Auxiliary Input
N/A
Channels
Two
Connectivity
USB
Inputs
Two - 2 x Line
Line Out
Two - 2 XLR Male (Mix Out, Direct Out)
Voltage
220-240V UK
VoltageRequirements
100-240 VAC, 50-60 Hz
Amplifier Type
Class-D
Color
Black
Product Name
StudioLive® 18sAI Active Integration Subwoofer, Black, 220-240V UK
Series
StudioLive®
Audio Controls
Speaker Level (Variable: -12 dB to +12 dB), Mono Sum
Cabinet Material
15mm Eucalyptus Plywood
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
Handle
2 Side
LF Power
2 x 500W Bridged (1000W Total)
LF Transducers
1x18" Ferrite (4" Voice Coil)
Product Depth
26" (66 cm)
Product Height
23" (58.42 cm)
Product Height/Length
23" (58.42 cm)
Product Weight
94 lbs. (42.64 kg)
Product Width
24" (60.96 cm)
DSP Features
Contour Presets: Normal, Extended LF Delay Presets: 0m, 1m, 2m
Power Cable
IEC
Protections
Amplifier: Over-Current, DC, Over/Under-Voltage, Over-Temperature, High Frequency
Transducer: 4-Channel Multi-Threat Limiter
Supported Sample Rates
96 kHz
Amplifier Dynamic Range
119 dB (A-Weighted)
Digital Audio Bit Depth
24 Bit
Peak SPL
135 dB
Total Harmonic Distortion
<0.05% (20 Hz - 20 kHz)
Total Power Output
1000W (Total Power Without Protection Algorithms and Limiter Enabled)
Speaker Type
Powered Subwoofer
Total Impedance
NA
Spécifications
Auxiliary Input
N/A
Channels
Two
Connectivity
USB
Inputs
Two - 2 x Line
Line Out
Two - 2 XLR Male (Mix Out, Direct Out)
Voltage
100-120V
VoltageRequirements
100-240 VAC, 50-60 Hz
Amplifier Type
Class-D
Color
Black
Product Name
StudioLive® 18sAI Active Integration Subwoofer, Black
Series
StudioLive®
Audio Controls
Speaker Level (Variable: -12 dB to +12 dB), Mono Sum
Cabinet Material
15mm Eucalyptus Plywood
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
Handle
2 Side
LF Power
2 x 500W Bridged (1000W Total)
LF Transducers
1x18" Ferrite (4" Voice Coil)
Product Depth
26" (66 cm)
Product Height
23" (58.42 cm)
Product Height/Length
23" (58.42 cm)
Product Weight
94 lbs. (42.64 kg)
Product Width
24" (60.96 cm)
DSP Features
Contour Presets: Normal, Extended LF Delay Presets: 0m, 1m, 2m
Power Cable
IEC
Protections
Amplifier: Over-Current, DC, Over/Under-Voltage, Over-Temperature, High Frequency
Transducer: 4-Channel Multi-Threat Limiter
Supported Sample Rates
96 kHz
Amplifier Dynamic Range
119 dB (A-Weighted)
Digital Audio Bit Depth
24 Bit
Peak SPL
135 dB
Total Harmonic Distortion
<0.05% (20 Hz - 20 kHz)
Total Power Output
1000W (Total Power Without Protection Algorithms and Limiter Enabled)
Speaker Type
Powered Subwoofer
Total Impedance
NA
