      2-channel High-Voltage Tube Preamp

      Co-designed with famed tube-circuit designer Anthony DeMaria, the ADL 600 is our top-of-the-line tube mic preamplifier. Featuring a Class A, discrete design with three top-grade vacuum tubes per channel, it uses only top-shelf components and operates with ±300V power rails for maximum headroom and superb tone. The dual-transformer design also ensures low-noise operation, with maximum common-mode rejection. The result is an ultra-low-noise tube preamp with a big, warm, smooth, clear, distinctive sound. We believe it is the best tube mic preamplifier money can buy. When you hear it, we’re confident you’ll agree.

      Overview

      Caractéristiques

      • Mic, line, and instrument inputs
      • High-voltage, Class A, dual-transformer, vacuum-tube preamp
      • 3 military-grade vacuum tubes
      • Input-source select
      • Variable mic-input impedance (150, 300, 900, 1,500Ω)
      • Variable high-pass filter (40, 80, 120 Hz)
      • 8-position Gain switch
      • Variable Trim adjustment for final stage
      • 48V phantom power
      • -20 dB pad
      • Polarity-reverse switch
      • Backlit VU meter (output level) with -6 dB switch (for metering hot signals)
      • > 73 dB of gain
      • 2 unbalanced ¼” instrument inputs (front panel)

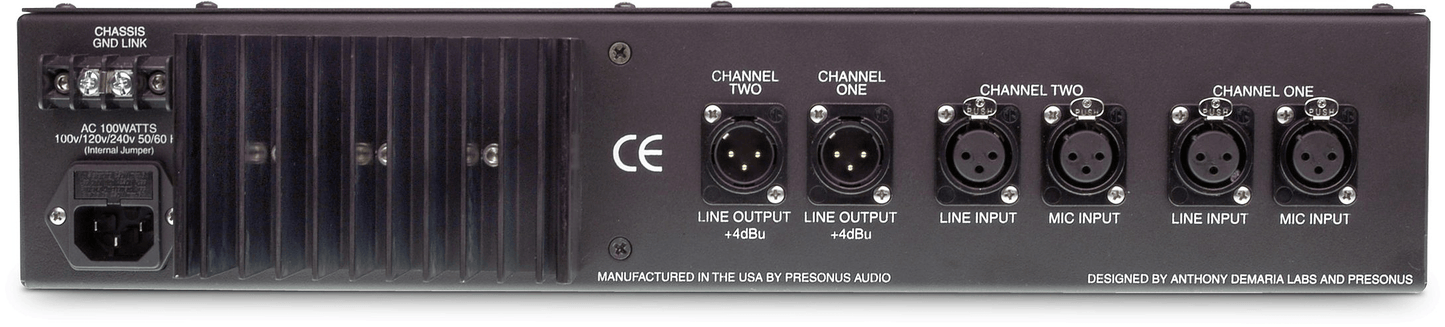

      • 2 transformer-balanced XLR line inputs
      • 2 transformer-balanced XLR mic inputs
      • 2 transformer-balanced XLR line outputs
      • 2U 19” rack-mountable, rugged steel chassis
      • Internal power supply with standard IEC connector
      • Chassis-ground link connectors (lift chassis ground)
