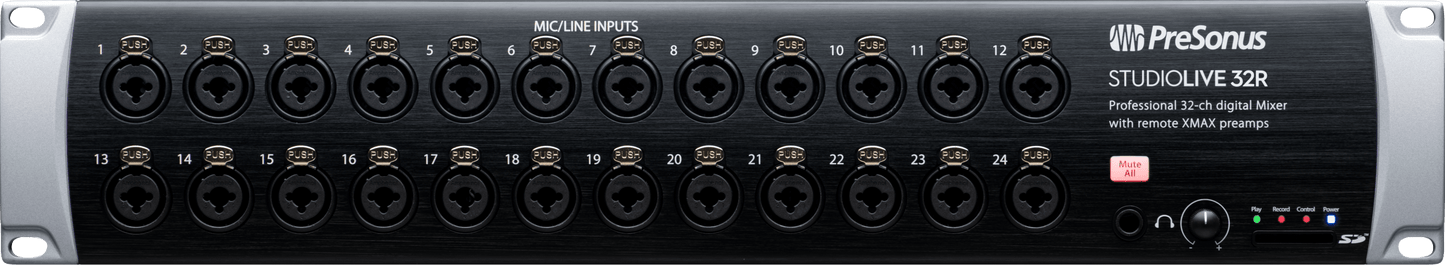

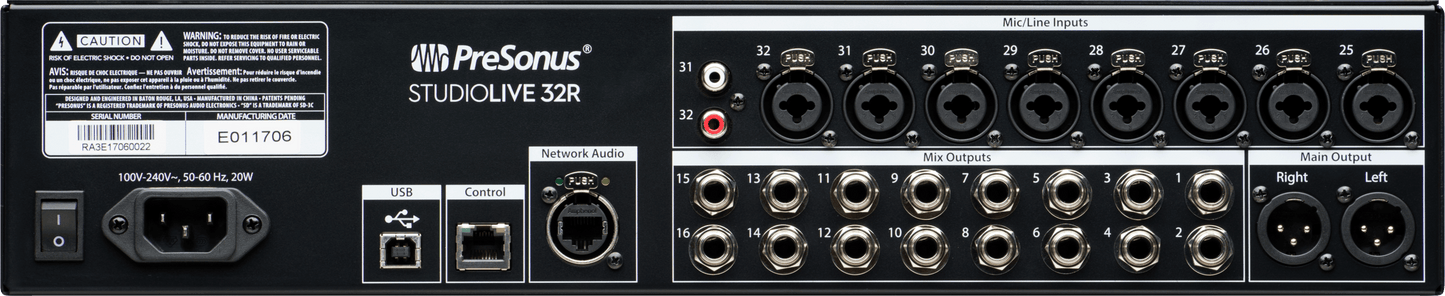

StudioLive® Series III 32R Digital Rack Mixer
StudioLive® Series III 32R Digital Rack Mixer
SKU:
2779206203
Regular price
€1.899,00
Regular price
€1.899,00
€1.899,00
Sale price
Unit price
per
Our 34-input, 40-channel Series III stage box and rack mixer is four audio tools in two compact rackspaces.
Couldn't load pickup availability
Overview
34-input, 40-channel rack mixer with stagebox and monitor mixer modes.
The StudioLive® 32R digital mixer is four audio tools in two compact rackspaces. Use it as a standalone digital mixer with Universal Control remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. Plug it into your studio computer, and you have a continuously bidirectional, 128-channel (64x64) USB audio interface with modeled vintage dynamics and EQ plug-ins on every input and bus. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful.
Inside the StudioLive 32R, the single-core PreSonus® FLEX DSP Engine powers 40 mixing channels, 22 mix buses, and 270 simultaneous processors, including 4 stereo effects and Fat Channel plug-in models on every input channel and bus. This is a true 40-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad®, Android™ tablet, or Windows® Touch computer using Universal Control. Universal Control was designed to make mixing on a touch screen as intuitive as mixing on faders.
An integrated 128-channel (64x64) audio interface lets you record with digitally recallable analog preamps and a complete rack of vintage EQ and dynamics processors for every channel and bus. Modeled after classic analog studio designs, these compressor and EQ plug-ins load both natively on the StudioLive 32R and inside Studio One Pro®, providing the ultimate mixing and recording flexibility.
Overview
Features
- Powered by the new dual-core PreSonus® FLEX DSP Engine to provide the most processing of any digital mixer in its class
- 36 input-channel digital rack mixer with 32 local digitally controlled XMAX mic/line inputs and FLEX FX returns
- 26 mix buses: 16 FlexMixes (Aux, Subgroup, Matrix), 4 dedicated FLEX FX buses, and Stereo Main bus
- 286 simultaneous processors: HPF, Gate/Expander Compressor with Fat Channel plug-in models, 4-band/6-band parametric EQ with Fat Channel plug-in models, Limiter
- 31-band graphic EQ
- 4 FLEX FX slots featuring legendary classic reverb emulations and delays
- State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
- FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
- 24 DCAs to control groups of channels
- 128-channel (64x64) recording over USB
- Onboard stereo SD recorder with true Virtual Soundcheck mode
- AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
- Monitor Mix and Stage Box mode for use with StudioLive Series III console mixers
- Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
- Remote control every mix function from your computer, iPad®, or Android™ tablet with Universal Control (included)
- Put your musicians' monitor mix under their fingers with QMix®-UC (included) for iOS® or Android
- Capture® 3.0 multitrack software included with Automated Virtual Soundcheck
- Professional Recording Software Included - Studio One Pro License
- Ableton® Live Lite included
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Software
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
The perfect personal monitoring system.
When combined with up to 16 EarMix 16M personal monitor mixers, the StudioLive 32R is the most powerful personal monitoring hub available. With 16 FlexMix buses that can be configured as aux mixes, subgroups, or matrix mixes, the StudioLive 32R makes it easy to create simplified mixes for musicians on stage. No other personal monitoring system offers so much power and flexibility.
The digital stage box.
As a digital stage box, the StudioLive 32R provides 24 remote digitally controlled XMAX preamps that can be gain-staged right from your StudioLive Series III console Fat Channel. The outputs of the StudioLive 32R automatically mirror the mixes available on your console mixer, making routing fast and easy.
One-click recording
The StudioLive 32R is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!
Studio One Pro 7 DAW Software License Included.
Your hardware registration includes a perpetual License to Studio One Pro.
Specs
Electronics
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
VoltageRequirements
100-230 VAC, 50-60 Hz
General
Color
Black
Product Name
StudioLive® Series III 32R Digital Rack Mixer, Black, 230-240V UK
Series
StudioLive®
Hardware
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Inputs
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Measurements
Product Depth
12" (305mm)
Product Height
3.5” (90 mm)
Product Width
19" (483mm)
Miscellaneous
Commodity Code
8543709099
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Supported Sample Rates
48 kHz, 44.1 kHz
Output
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Performance
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
