Quantum ES Ultimate Bundle
Quantum ES Ultimate Bundle
Couldn't load pickup availability
Overview
EVERYTHING YOU NEED, NOTHING YOU DON'T.
The PreSonus Quantum ES Ultimate Bundle is your one stop shop for professional studio-quality recording. Featuring the high-performance Quantum ES 2 USB-C Audio Interface with all-new MAX-HD mic preamps, a Studio One Pro software license and 12 months of access to tools, extras, add-ons, and more with Studio One Pro , a pair of powerful Eris 3.5 Studio Monitors packed with low-end punch, a pair of HD9 dynamic high-definition headphones, and an exceptionally clear M9 cardioid condenser microphone, the PreSonus Quantum ES Ultimate Bundle gives you everything you need to create like a pro.

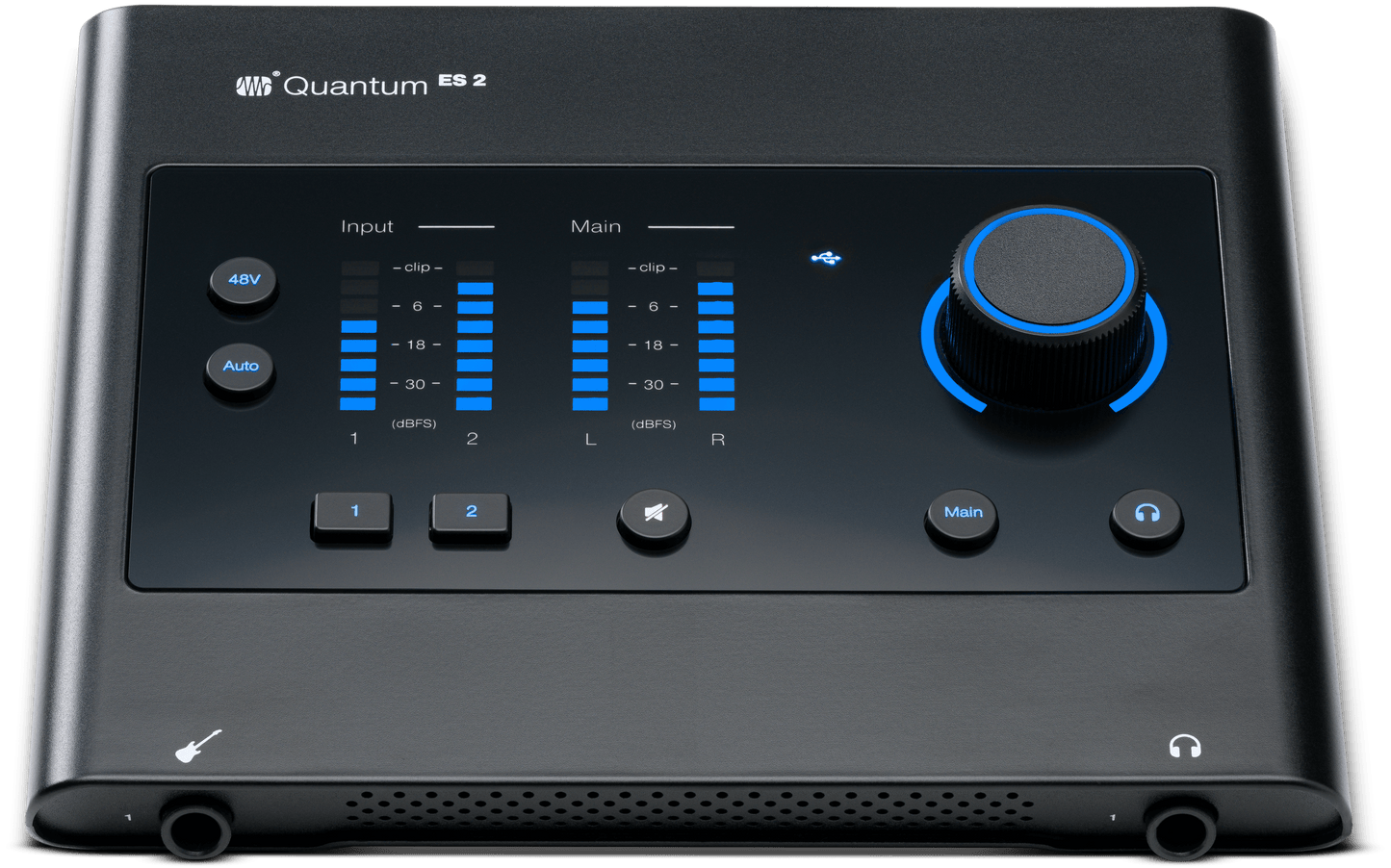

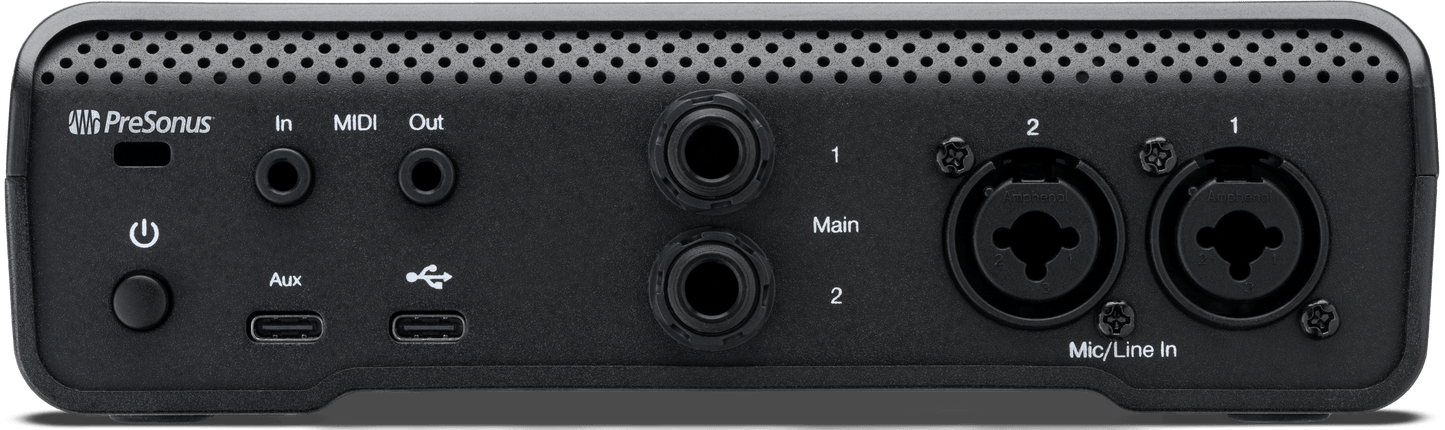

PreSonus Quantum ES 2 USB-C Audio Interface
- 2x2, 24-bit / 192 kHz USB-C Audio Interface
- High Performance Signal Flow – Custom low-latency drivers and low-noise converters.
- All-New MAX-HD Mic Preamps – The culmination of 30 years of innovation, our rigorously redesigned preamps feature digitally-controlled analog with 75 dB of gain range.
- Co-Developed with Fender® – Front-facing instrument input engineered for guitarists by industry-leading experts.
- Auto Gain – Dial in recording-ready levels, hassle-free.
- Universal Control App – Full control and metering from your mobile device, desktop, or tablet.
Pro DAW Recording Software Included
- Free Studio One Pro DAW recording software perpetual license.

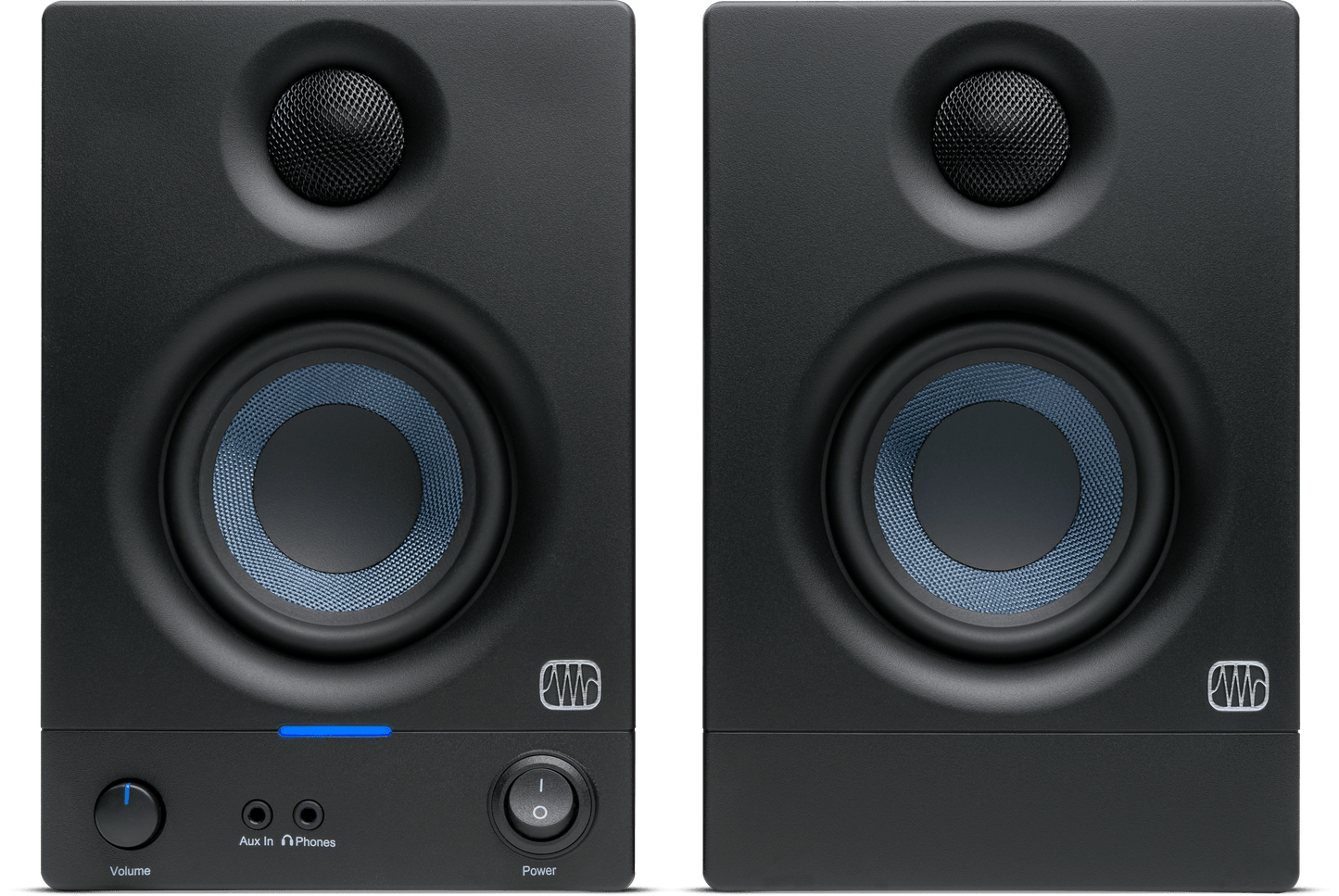

PreSonus Eris 3.5 Studio Monitors
- 3.5-inch, woven-composite, low-frequency driver
- 1-inch, ultra-low mass, silk-dome, high-frequency driver
- 50W, Class AB dual amplification
- 80 Hz to 20 kHz frequency response
- 98 dB SPL (Peak, @ 1 meter)
- High- and low-frequency Acoustic Tuning controls
- Balanced, ¼-inch TRS inputs; unbalanced, ⅛-inch stereo and RCA inputs; and integrated stereo headphone amplifier with front-panel ⅛-inch output
- Protection: RF interference, output-current limiting, over-temperature, turn-on/off, transient, subsonic filter
- Power Saver mode (engages after 40 minutes)
- Comes with speaker wire, ⅛-inch TRS to stereo RCA cable, and stereo ⅛-inch TRS to ⅛-inch TRS cable

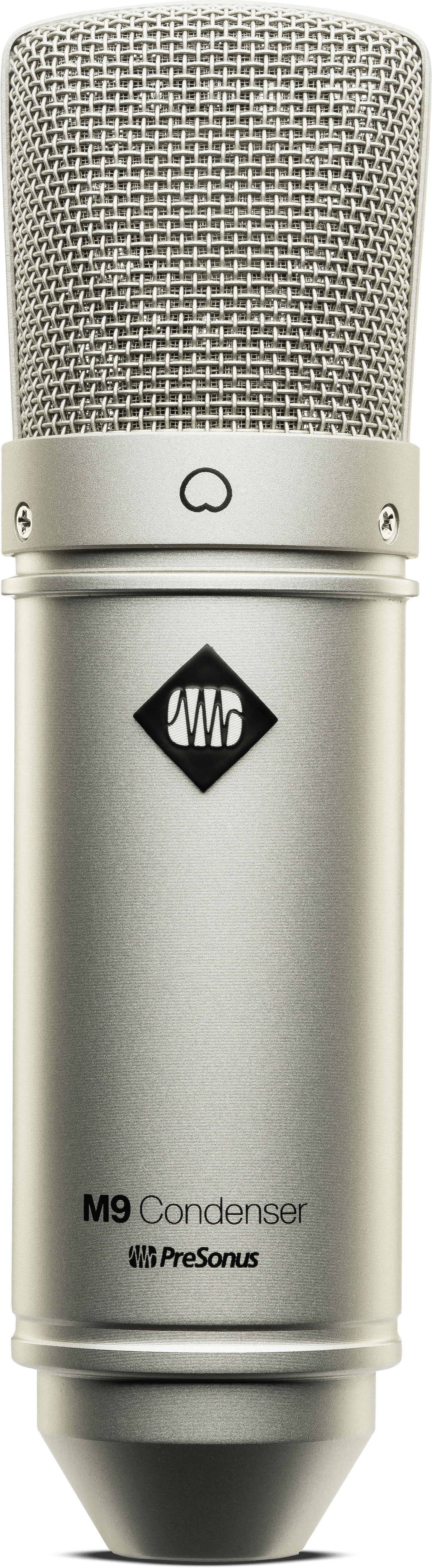

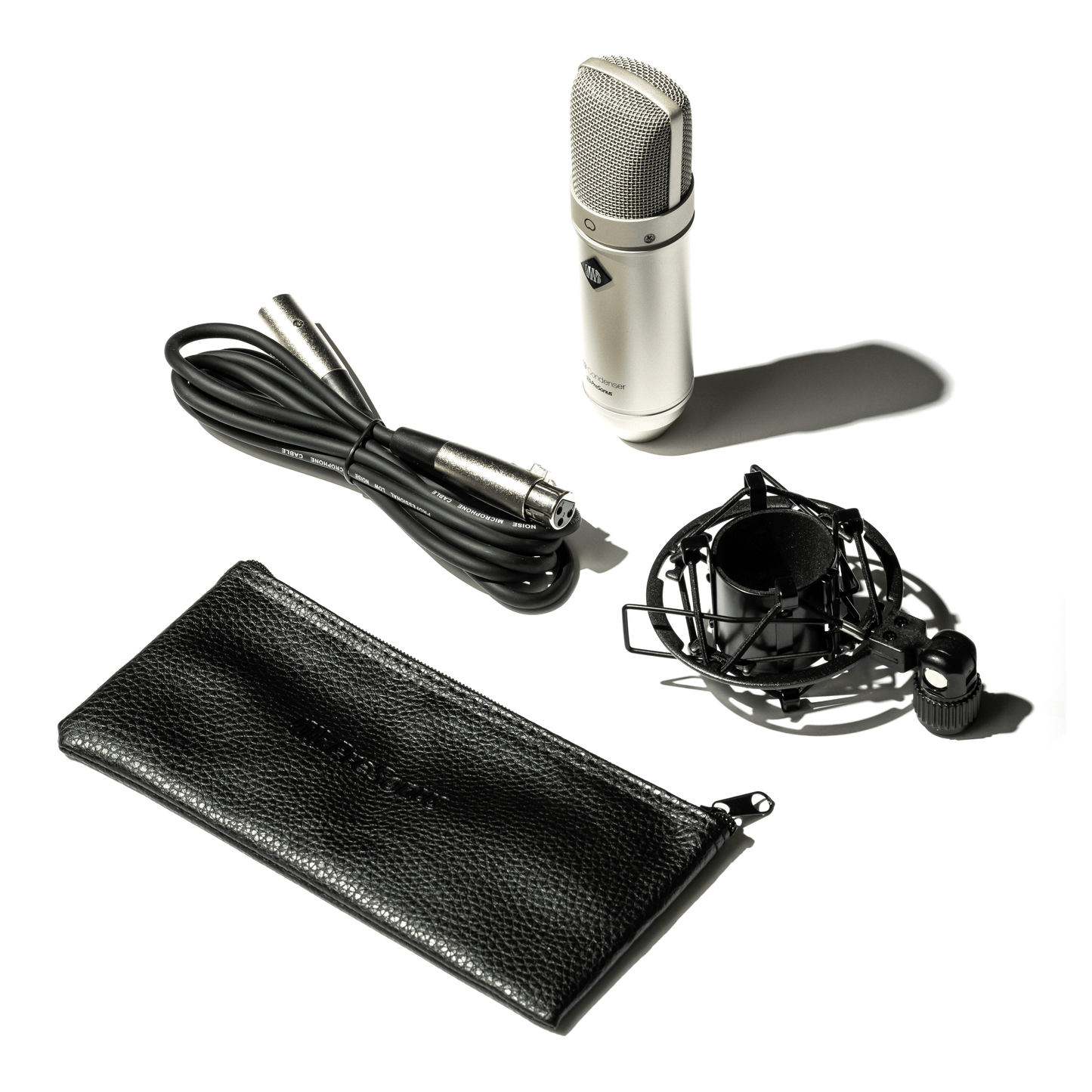

PreSonus M9 Microphone
- Exceptionally clear cardioid condenser microphone
- Vintage-inspired sound
- Satin nickel finish
- Die cast zinc housing
- 18mm pure aluminum diaphragm
- 20Hz-20kHz frequency response
- Shock mount

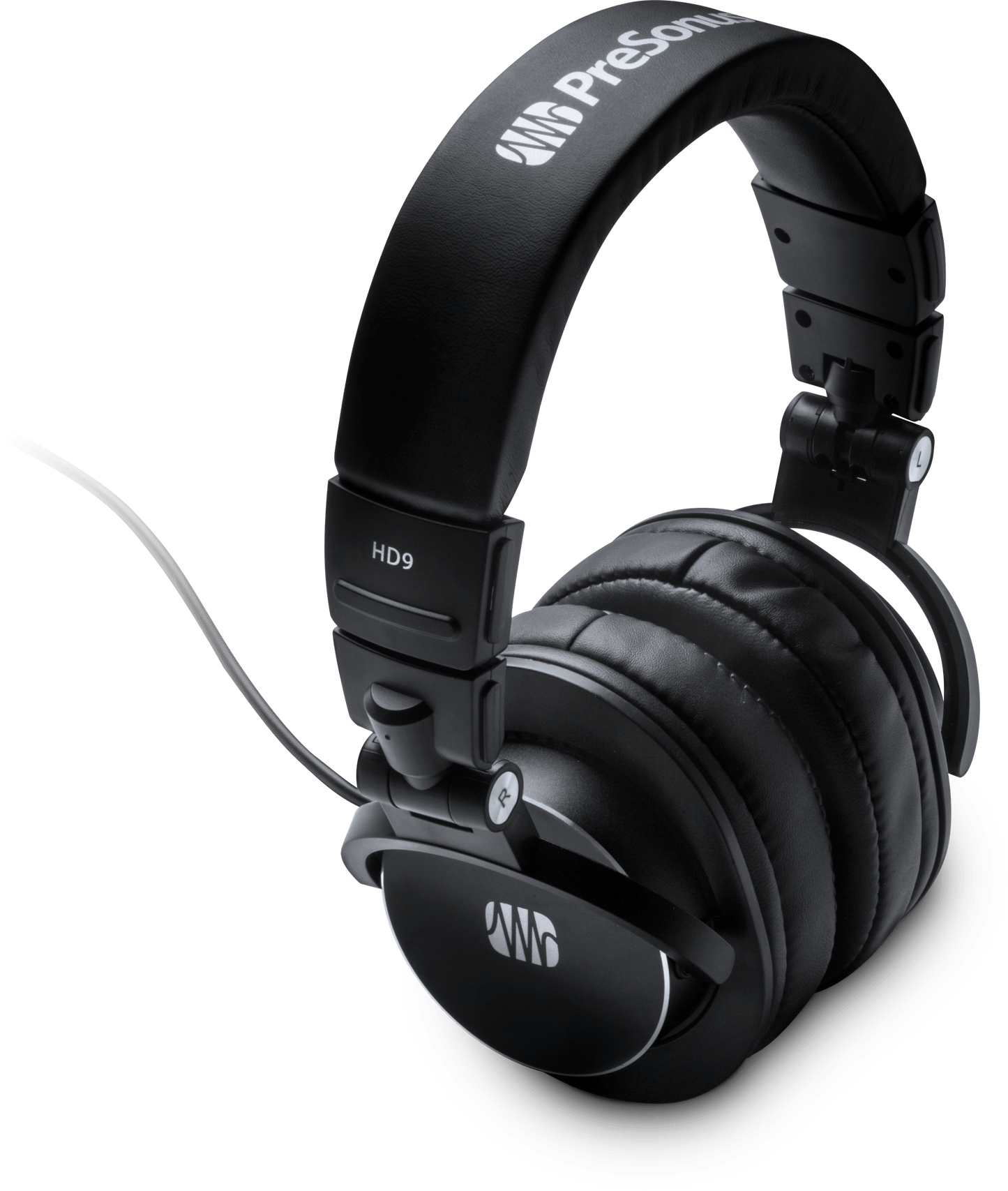

PreSonus HD9 Professional Monitoring Headphones
- Dynamic high-definition headphones with high-resolution drivers
- Precision-tuned acoustic chamber
- Extended bass response
- Comfortable and long-lasting ear pads
- Lightweight and collapsible
· Dynamic high-definition headphones with high-resolution drivers
· Precision-tuned acoustic chamber
· Extended bass response
· Comfortable and long-lasting ear pads
· Lightweight and collapsible
Overview
Features
- PreSonus Quantum ES 2 USB-C Audio Interface – High-performance 24 bit / 192 kHz USB Recording Interface.
- Professional Recording Software Included – Studio One Pro software license.
- PreSonus Eris 3.5 Studio Monitors – 3.5-inch media reference monitors packed with low-end punch and studio-quality sound.
- PreSonus M9 Microphone with Shock Mount – Exceptionally clear cardioid condenser microphone with shock mount.
- PreSonus HD9 Professional Monitoring Headphones – Dynamic high-definition headphones with high-resolution drivers.
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Software
Don't see what you're looking for?
Log in to your my.presonus.com account.
Specs
Electronics
Connectivity
USB-C®
Headphone Jack
One - 1/4" TRS Female Stereo
Input Impedance
10 kΩ
Phantom Power
+48 VDC
Phantom Power Requierments
48 volt
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Quantum ES 2 Ultimate Bundle, Black, UK
Series
Quantum
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Low Frequency (±6 dB, center 100 Hz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
Driver Type
45 mm, Neodymium
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Transducers
3.5" Woven Glass Fiber Composite
Microphone Element
18mm pure aluminum diaphragm
Microphone Types
Condenser
Monitor Inputs
1- Stereo 1/8", 2 - Balanced 1/4” TRS, 2 - Unbalanced RCA
Power Amplifier Type
Class AB
Inputs
Instrument Inputs Dynamic Range
111 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Instrument Inputs Gain Range
75 dB
Instrument Inputs Maximum Level
+15 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range
114 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Line Inputs Gain Range
+/- 10 dB
Line Inputs Impedance
10K Ohms
Line Inputs Maximum Level
+15 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion
0.001% (1 kHz, Minimum Gain)
Microphone Input Connection Type
XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range
113 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise
-129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted)
Microphone Preamp Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Microphone Preamp Gain Control Range
75 dB
Microphone Preamp Input Impedance
1600 Ohms
Microphone Preamp Maximum Input Level
+14 dBu (Balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion
0.001% (1 kHz, Minimum Gain)
Measurements
Product Depth
11.9” (30.23 cm)
Product Height
16" (406 mm)
Product Width
15.8" (40.2 cm)
Miscellaneous
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Output
Headphone Outputs Dynamic Range
111 dB (A-Weighted)
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Headphone Outputs Impedance Working Range
22 Ohms
Headphone Outputs Maximum Output
7.5 dBu (50 Ohms)
Headphone Outputs Total Harmonic Distortion
0.02% (1 kHz)
Main And Line Outputs Dynamic Range
117 dB (A-Weighted)
Main And Line Outputs Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Main And Line Outputs Maximum Level
+15 dBu (Balanced)
Main And Line Outputs Output Impedance
51 Ohms
Main And Line Outputs Total Harmonic Distortion
0.001% (1 kHz, +4 dBu)
Main Outputs Connection Type
1/4" TRS Female
Performance
Digital Audio Bit Depth
24-bit
Digital Audio Dynamic Range
120 dB
Headphone Frequency Response
10 Hz to 26 kHz
Headphone Maximum Power
1800 mW
Headphone Rated Impedance
40Ω
Headphone Sensitivity
98 dB SPL (1 mW)
Microphone Frequency Response
20 Hz to 20 kHz
Microphone Sensitivity
-38dB±2dB (0dB=1V/Pa at 1kHz)
Peak SPL
98 dB (@ 1 meter)
Polar Patern
Cardioid
Speakers
Crossover Frequency
2.8 kHz
Specs
Electronics
Connectivity
USB-C®
Headphone Jack
One - 1/4" TRS Female Stereo
Input Impedance
10 kΩ
Phantom Power
+48 VDC
Phantom Power Requierments
48 volt
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Quantum ES 2 Ultimate Bundle, Black, EU
Series
Quantum
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Low Frequency (±6 dB, center 100 Hz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
Driver Type
45 mm, Neodymium
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Transducers
3.5" Woven Glass Fiber Composite
Microphone Element
18mm pure aluminum diaphragm
Microphone Types
Condenser
Monitor Inputs
1- Stereo 1/8", 2 - Balanced 1/4” TRS, 2 - Unbalanced RCA
Power Amplifier Type
Class AB
Inputs
Instrument Inputs Dynamic Range
111 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Instrument Inputs Gain Range
75 dB
Instrument Inputs Maximum Level
+15 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range
114 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Line Inputs Gain Range
+/- 10 dB
Line Inputs Impedance
10K Ohms
Line Inputs Maximum Level
+15 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion
0.001% (1 kHz, Minimum Gain)
Microphone Input Connection Type
XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range
113 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise
-129 dBu (Maximum Gain, 150 Ohms, 22 kHz BW, A-Weighted)
Microphone Preamp Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Microphone Preamp Gain Control Range
75 dB
Microphone Preamp Input Impedance
1600 Ohms
Microphone Preamp Maximum Input Level
+14 dBu (Balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion
0.001% (1 kHz, Minimum Gain)
Measurements
Product Depth
11.9” (30.23 cm)
Product Height
16" (406 mm)
Product Width
15.8" (40.2 cm)
Miscellaneous
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Output
Headphone Outputs Dynamic Range
111 dB (A-Weighted)
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)
Headphone Outputs Impedance Working Range
22 Ohms
Headphone Outputs Maximum Output
7.5 dBu (50 Ohms)
Headphone Outputs Total Harmonic Distortion
0.02% (1 kHz)
Main And Line Outputs Dynamic Range
117 dB (A-Weighted)
Main And Line Outputs Frequency Response
20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
Main And Line Outputs Maximum Level
+15 dBu (Balanced)
Main And Line Outputs Output Impedance
51 Ohms
Main And Line Outputs Total Harmonic Distortion
0.001% (1 kHz, +4 dBu)
Main Outputs Connection Type
1/4" TRS Female
Performance
Digital Audio Bit Depth
24-bit
Digital Audio Dynamic Range
120 dB
Headphone Frequency Response
10 Hz to 26 kHz
Headphone Maximum Power
1800 mW
Headphone Rated Impedance
40Ω
Headphone Sensitivity
98 dB SPL (1 mW)
Microphone Frequency Response
20 Hz to 20 kHz
Microphone Sensitivity
-38dB±2dB (0dB=1V/Pa at 1kHz)
Peak SPL
98 dB (@ 1 meter)
Polar Patern
Cardioid
Speakers
Crossover Frequency
2.8 kHz
